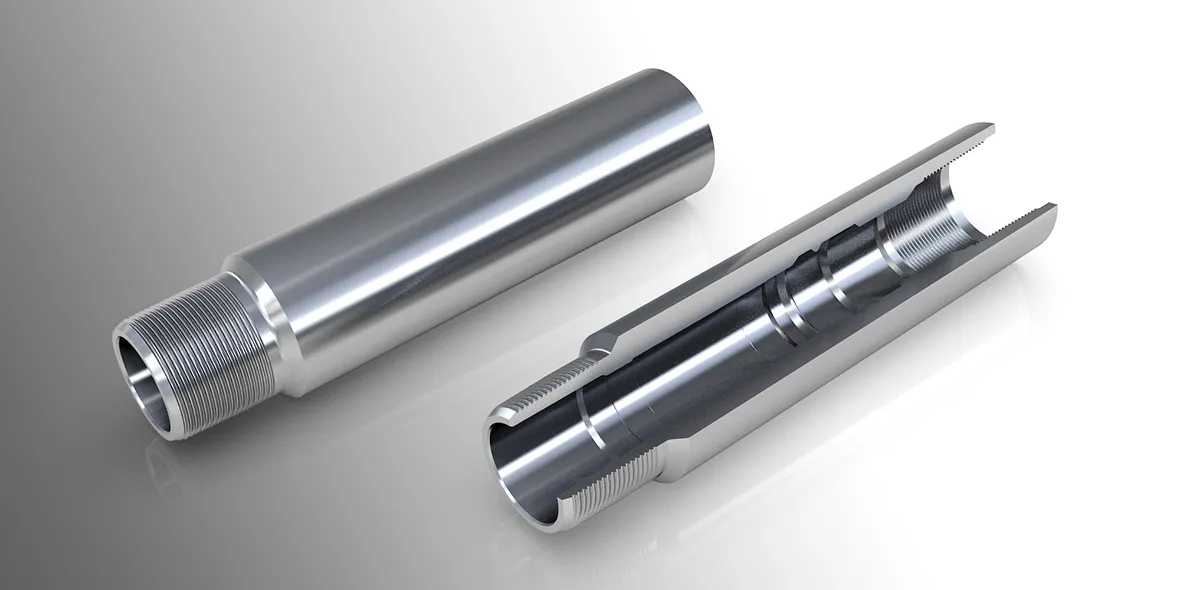

Nipple, wide range of Nipple, with 2 3/8, 2 7/8, 3 ½” and 4 ½”, standard service and sour environment.
-

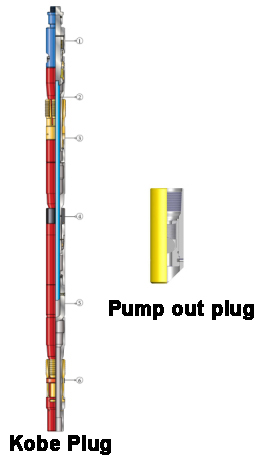

Kobe Plug, required to do pressure test which can be set anywhere in the tubing without profile, available at 2 3/8, 2 7/8, 3 ½” and 4 ½” standard service and sour environment.
-
Pump out plug, The Model Auto-fill Pump Out Plug is used as a tubing Plug device against which pressure can be applied in order to set Hydraulic Set Packers. The Pump out Ball Seat Sub is made up in the tail pipe below the Packer to be set. In this model with the ball seating down, the Pump out Plug acts as a reverse check valve preventing flow down the string, while allowing the string to fill from below. Without need to drop a ball to seat, the tubing can be pressured up. Once the Packer is set, tubing pressure is increased to values shown in the chart below to shear the screws holding the ball seat sub. The ball seat and the ball with spring etc. are blown out of the sub to the bottom of the well. Any tubing run below the ball seat sub should have sufficient I.D. clearance to permit passage of the ball, ball seat, spring etc.
-

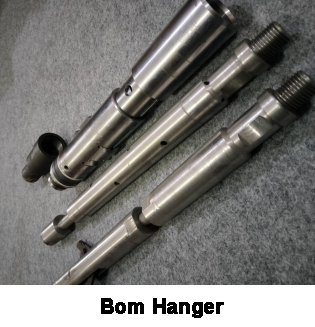

Bom Hanger, is utilized to hanging memory gauge at the nipple.
-

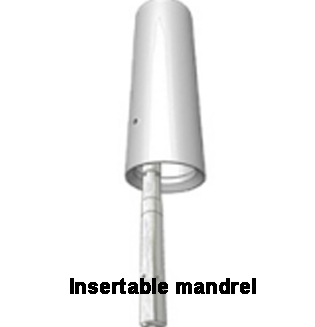

Insertable gas lift mandrel, is utilized as gas lift mandrel which can be install inside the existing tubing.
